jjRobots electronic brain shield v3.0 (Devia)

5 out of 5 based on 3 customer ratings
(8 customer reviews)

€ 28.00

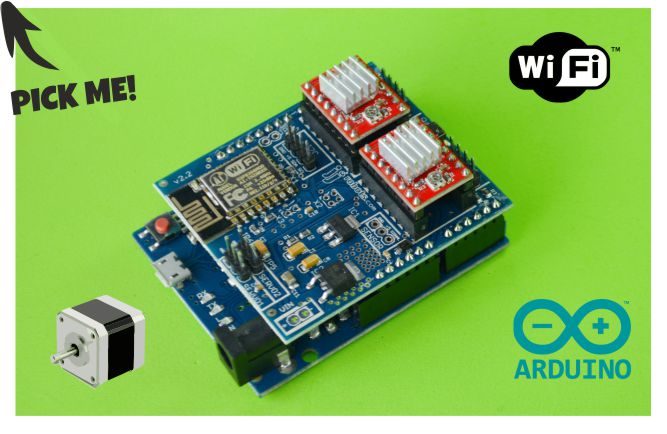

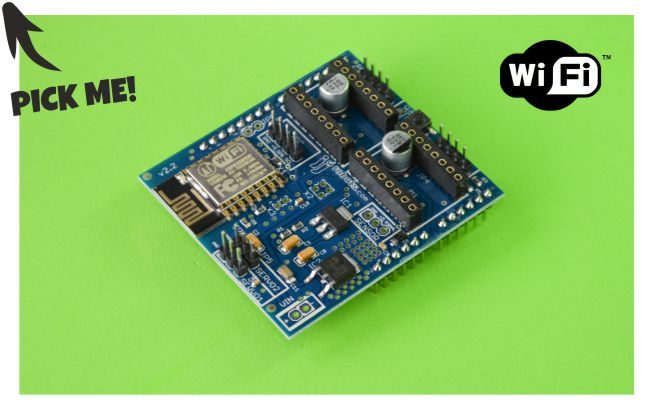

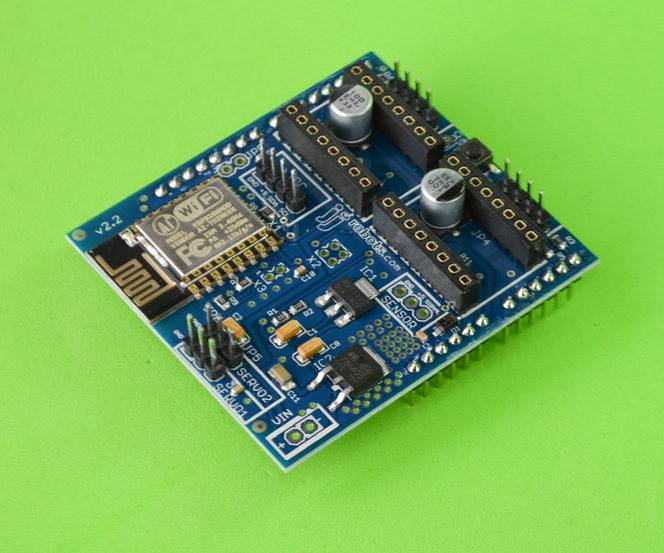

JJrobots´s Brain SHIELD. Created to simplify the set up and integration of all the different devices involved in the jjrobots projects.

This SHIELD has:

  • TWO stepper motor OUTPUTs
  • TWO SERVO OUTPUTs
  • I2C communications
  • Push button (customisable)
  • SENSOR port (SONAR, IR…)
  • ESP12-E (ESP8266) WIFI module (you can communicate to this SHIELD from any smartphone/tablet/PC using it)

Some OPEN robots you can create with this Brain Shield:

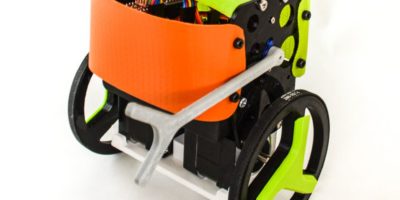

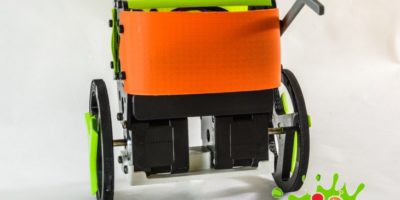

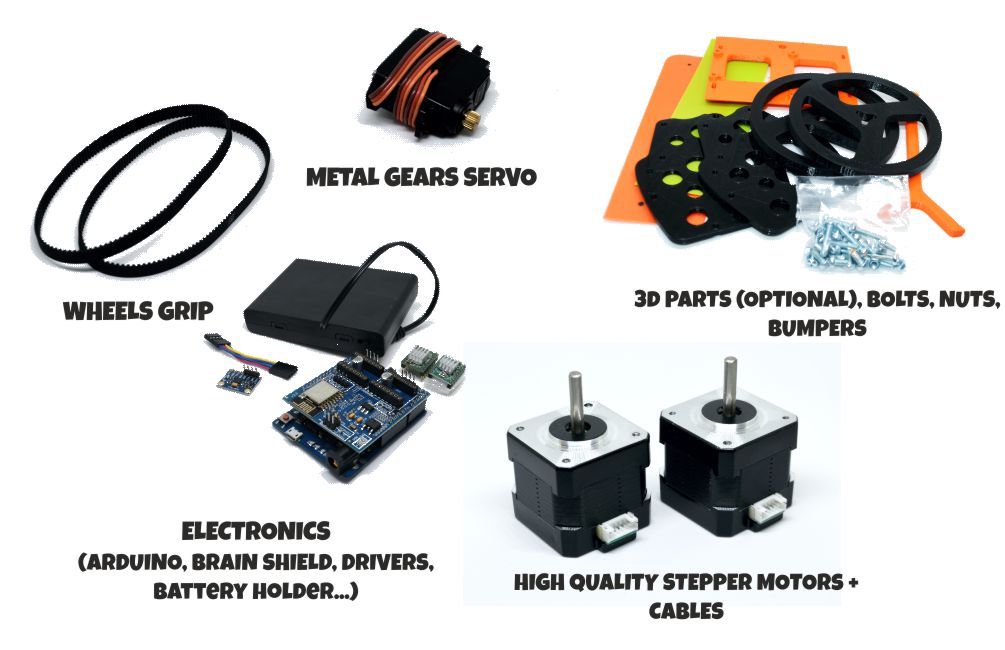

  • B-ROBOT EVO is a remotely controlled self-balancing arduino robot created with 3D printed parts. With only two wheels, B-ROBOT is able to maintain his balance all the time by using his internal sensors and driving the motors. You can control your Robot, making him moving or spinning,  by sending command through a Smartphone, Tablet or PC while he keeps the balance.

1

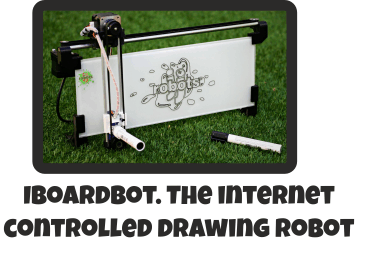

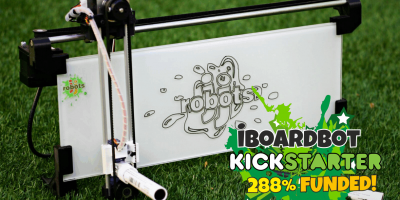

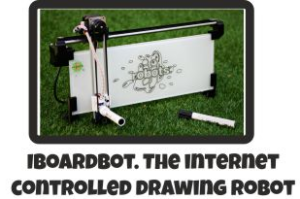

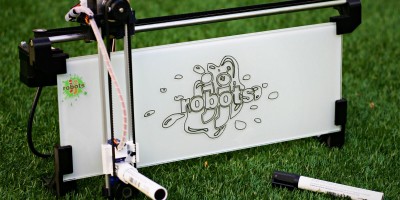

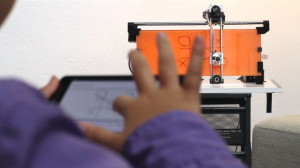

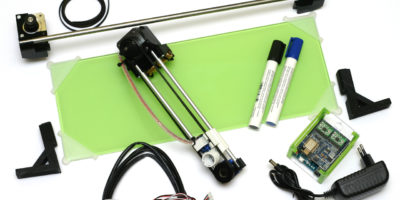

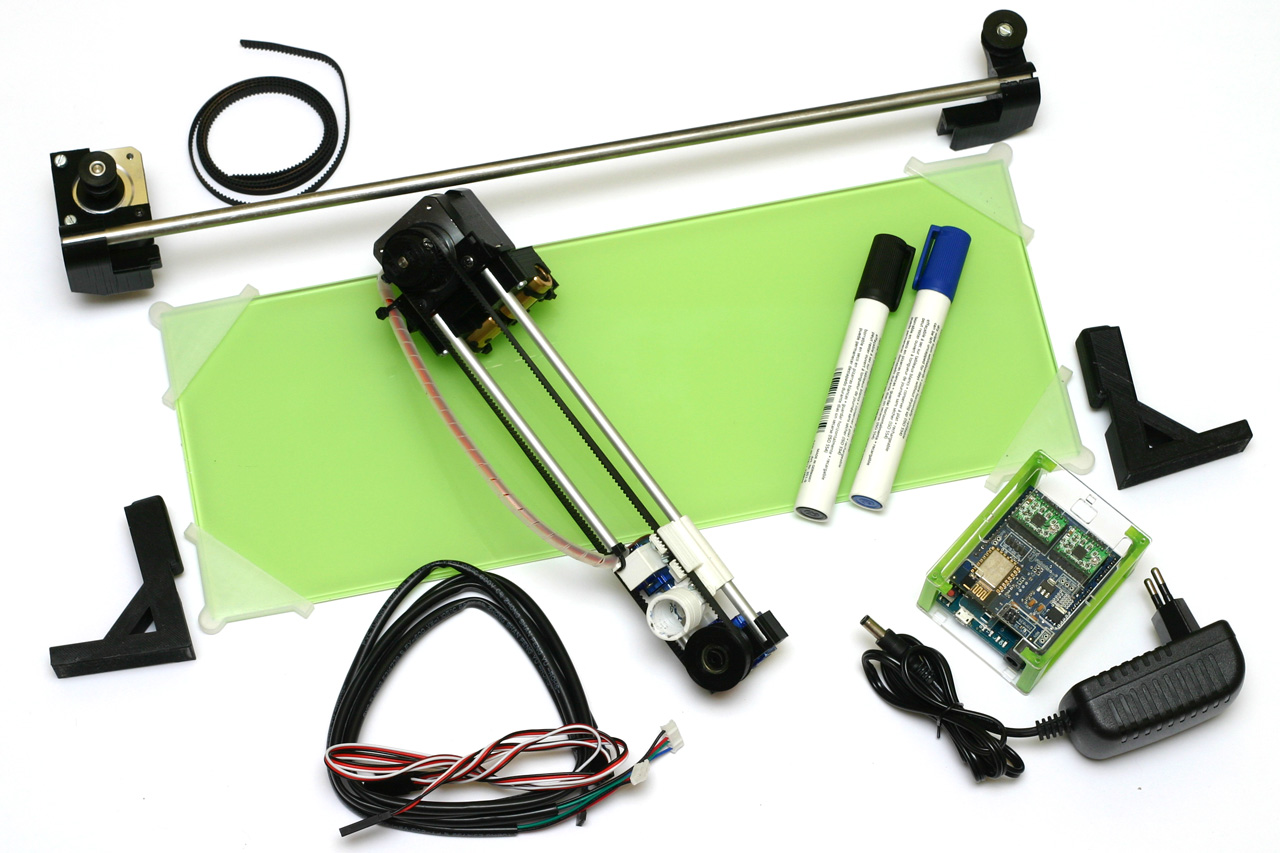

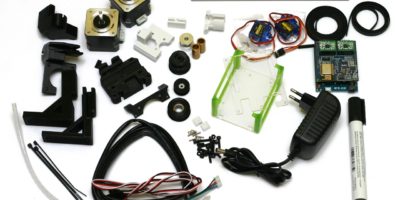

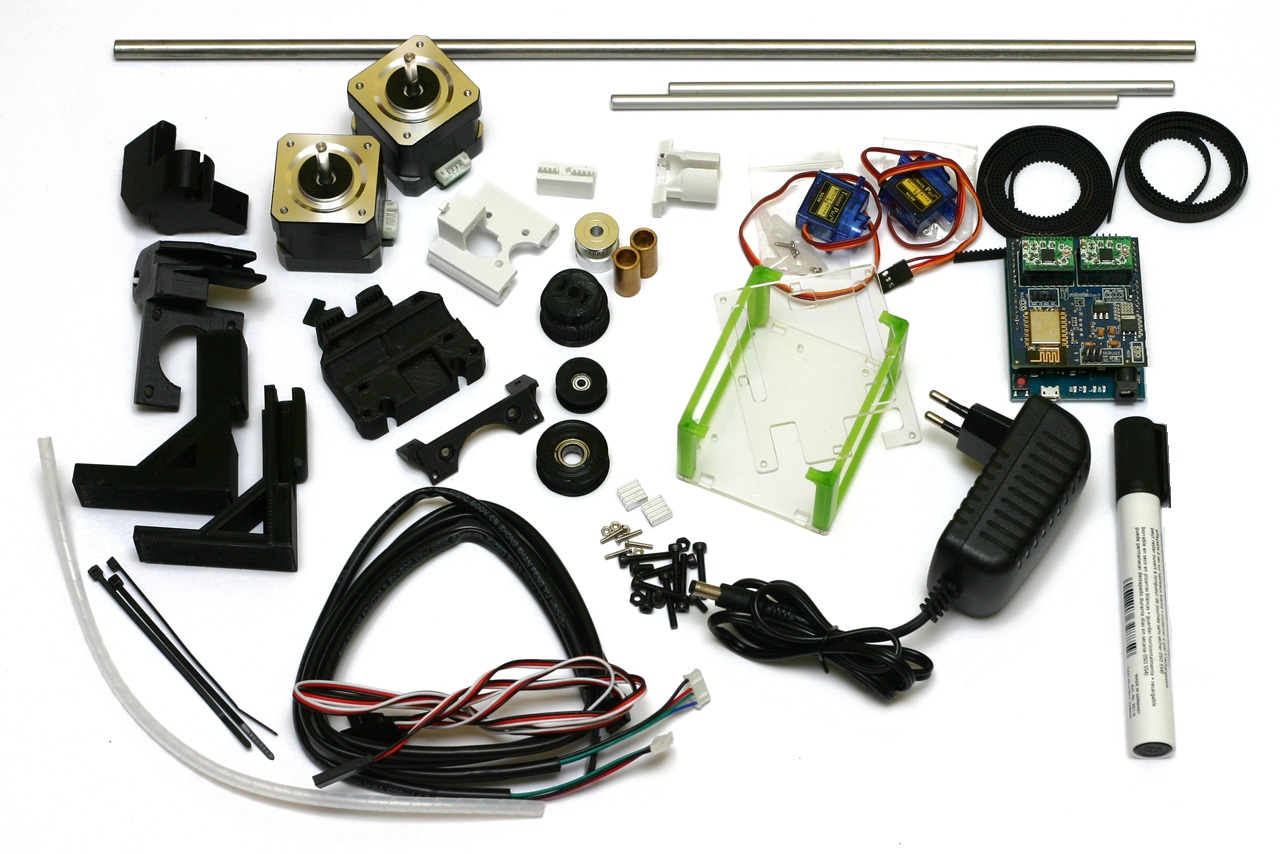

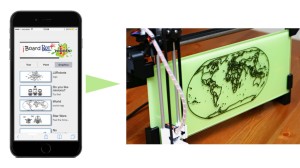

  • The iBoardbot is an internet controlled robot capable of writing+drawing (and wiping!) on a glass surface.2

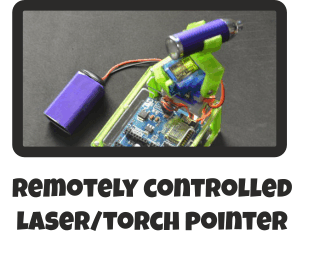

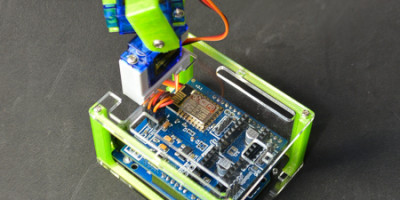

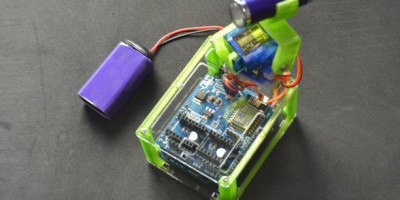

  • Remotely controlled Torch/ Laser robot: Laser pointer is a remotely controlled Arduino robot created with 3D printed parts. With only two servos, this robot is able to point any object in the X and Y axis.

3

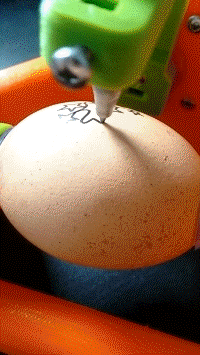

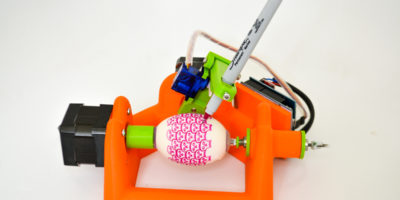

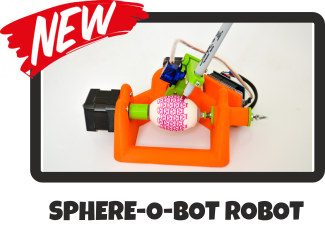

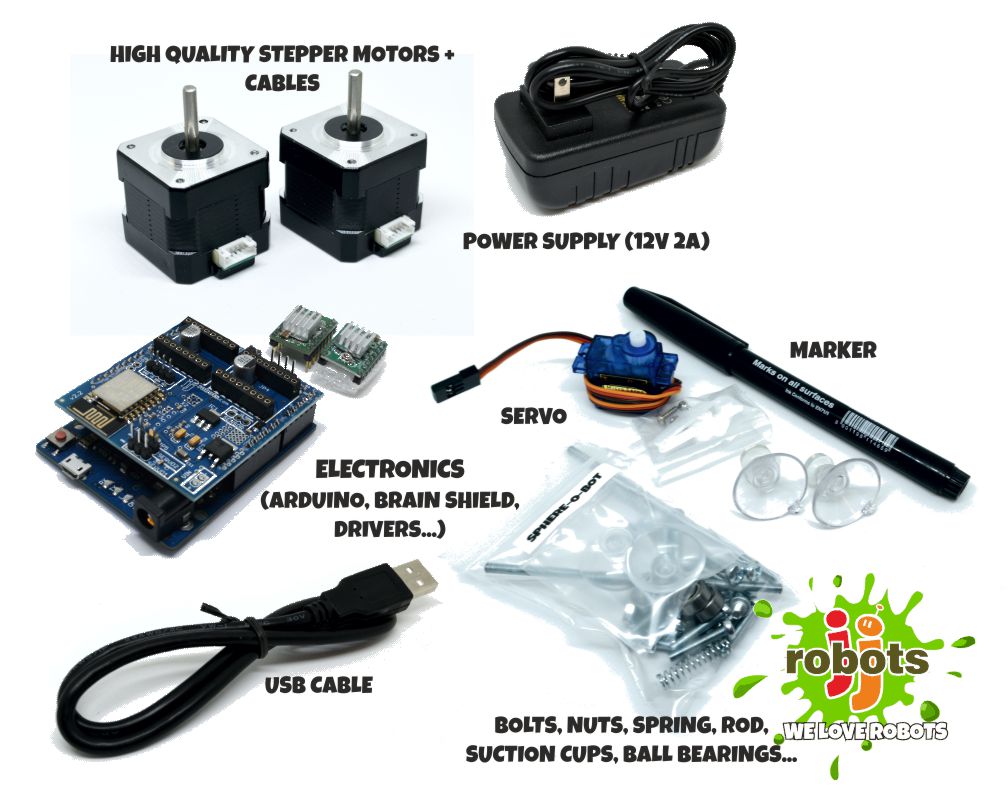

  • Sphere-O-Bot: The Sphere-O-bot is a friendly art robot that can draw on spherical or egg-shaped objects from the size of a ping pong ball to a large duck egg (4-9 cm).

The Sphere-O-Bot is a simple 2 axis drawing machine that can draw on most spherical surfaces. You can use it to decorate balls or eggs.

  • Many more to come!

4

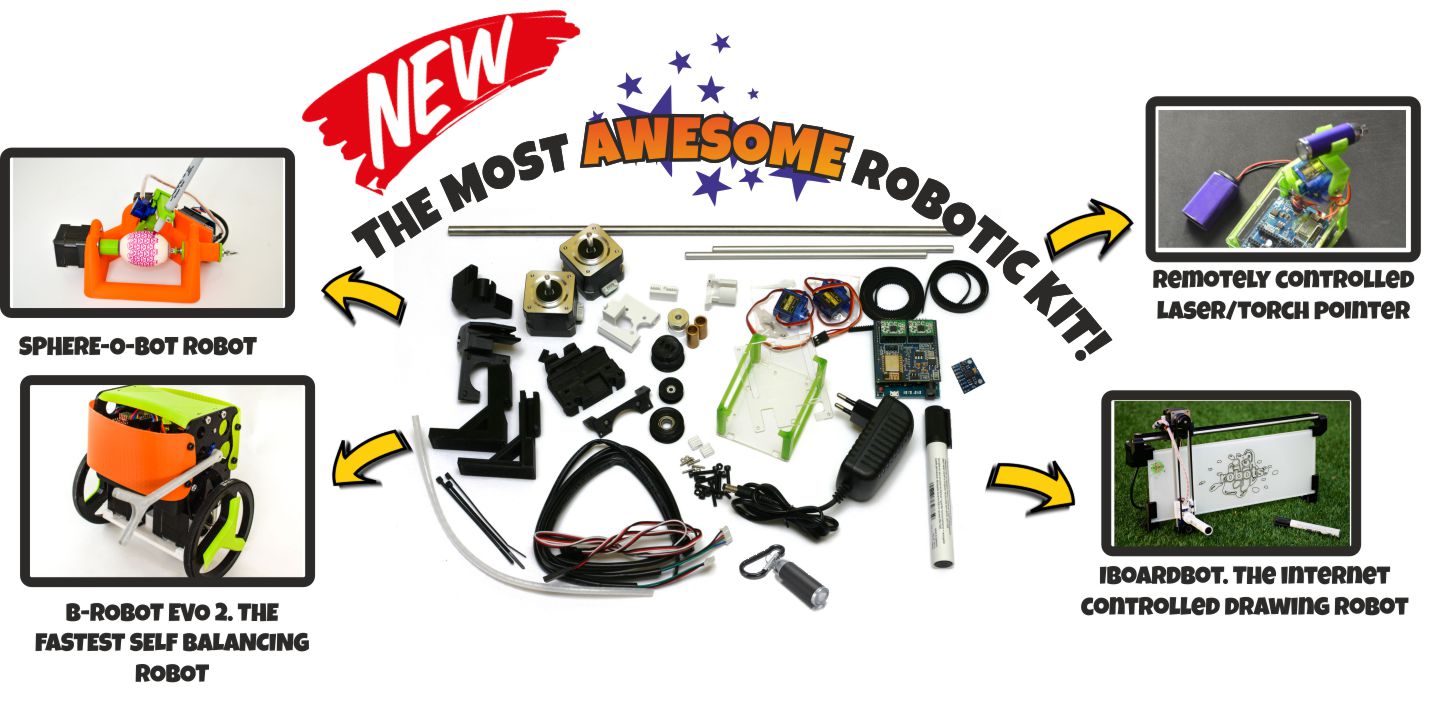

NOTE: There are FULL ROBOT KITS ready to be sent to you in the SHOP (scroll down to the very end of this page to see them too)

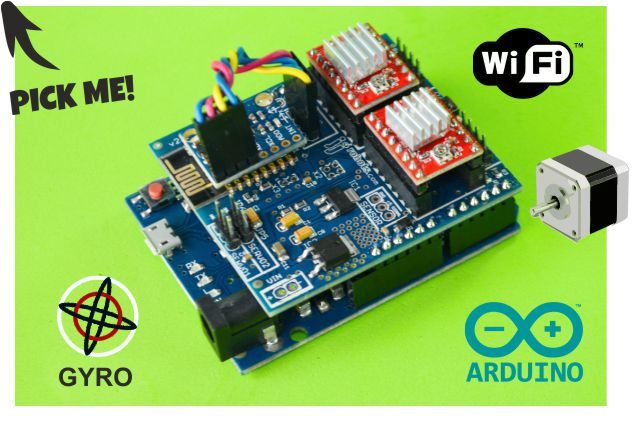

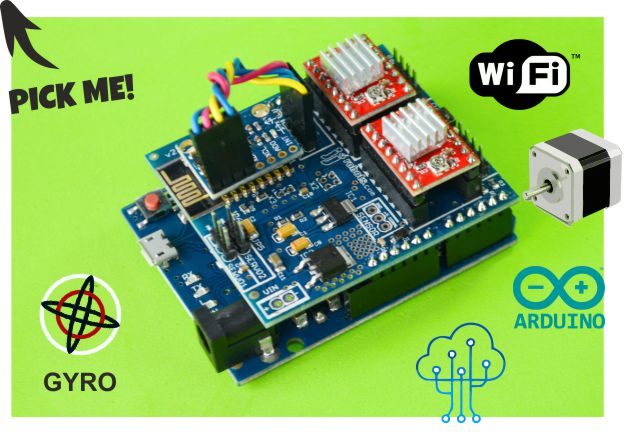

  • Brain Shield 3.0 COMBO:



    Wifi ready. This is the Electronic Brain inside every JJrobot. (Headers already soldered)

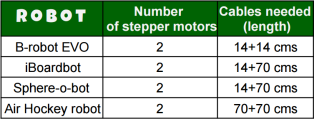

    Depending on the COMBO selected, it will be easier to assemble certain robots. We have created this MENU to facilitate this process: Hover over the question mark icon next to the price in order to know the robot/s you can create with that Brain Shield.

    • This option adds to the final price0 €
    • This option adds to the final price10 €
    • This option adds to the final price20 €
    • This option adds to the final price25 €
    • This option adds to the final price45 €
SKU: br03 Categories: , , , , Tags: , , , , , , ,

Product Description

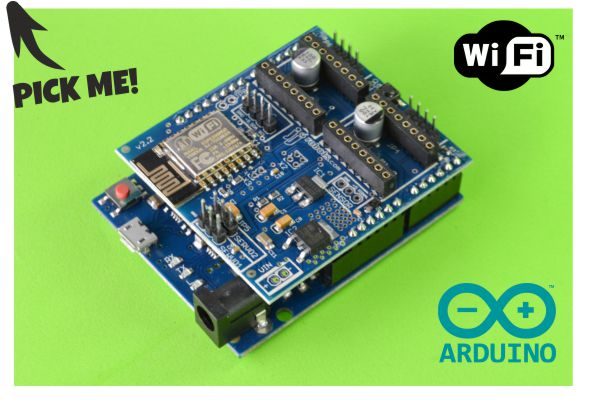

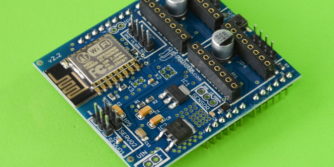

This is the control board shield you need to create any jjROBOT (you can also manufacture/create your own Brain Shield using the info provided at GITHUB)

 Features:

  • ESP12 wifi module integrated
  • Voltage regulators
  • External Vin
  • 2x stepper motors outputs
  • 2x servo outputs
  • Customisable button (can be used to change the behavior of the robot, pause it, change internal parameters…)

* All the headers already soldered



jjRobots projects features:

  • Open projects: code and 3D design files are open and shared. You could personalise your robots as much as you want.
  • DIY & Hackeable: the robots are not closed final products, all are open, modifiable and hackeable platforms, perfect to learn and play as much as you want!
  • Develop your own apps: You could modify the source code of jjROBOT to perform new tasks but the communication protocol is also open so you can develop your own IOS, Android, PC remote apps to control your customised robot!
  • Learn: All JJROBOTS products are OPEN SOURCE. You will receive a well documented project (source code and external documentation). We want you know all that is happening inside your Robot! This is ideal for learning and teaching technology.  All this KNOW HOW is available for everyone: How we are controlling the motors, how we read and integrate the information from gyros and accelerometers, how we are controlling the stability of the robots, how we communicate with the control apps, etc…
  • We are strongly committed to create our robots always using the same elements and electronics. This Brain Shield will be the CORE inside any robot. So, if you get it, you will use this Brain to create ANY jjRobot

– Build with your kids, at school, for yourself… these robots are unique gadgets.

– All the jjRobots have a medium size

– There is a small community behind the jjRobots so you will have a forum to ask questions, share your experiences and contact other users…





Additional Information

Weight 0.035 kg
Dimensions 5 x 5 x 1 cm
RoHS compliant
Quality PCB
