€ 25.50

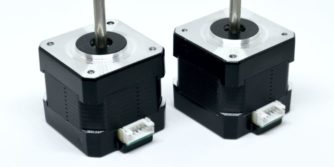

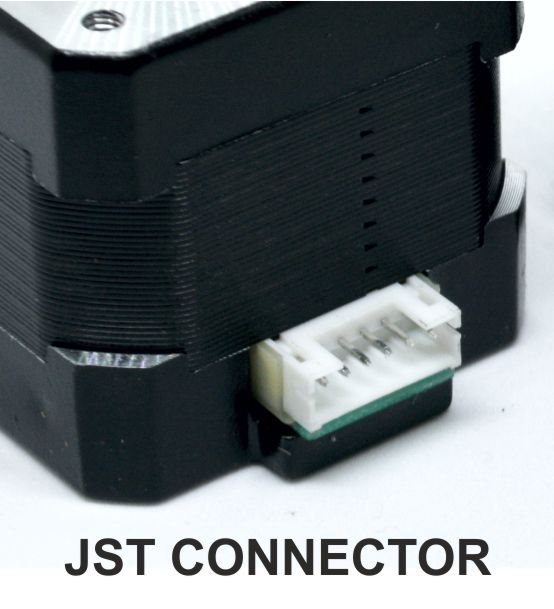

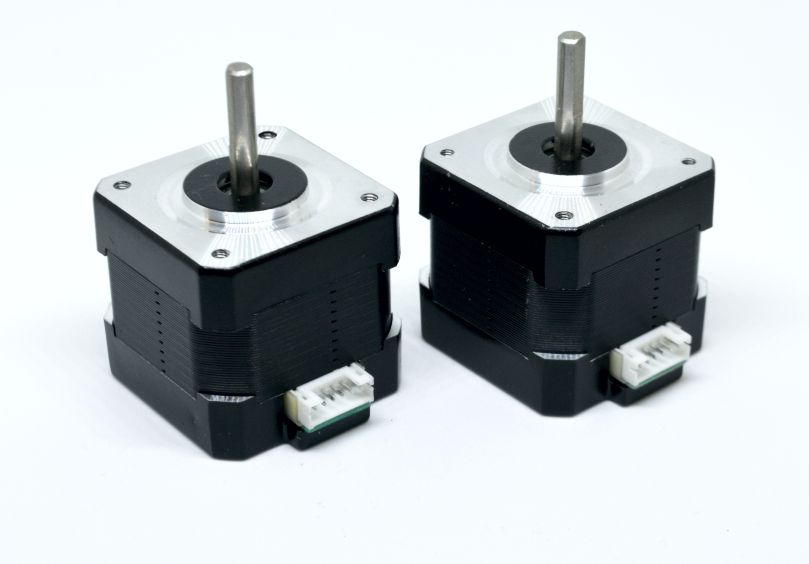

This is the motor used in every jjRobot. You liked the motors that came with your kit and want another pack of two? Do you like its sturdiness and its connector (forget to solder every time you have to change the cable length) ? This is the perfect stepper motor for MAKERs and Robots enthusiasts.

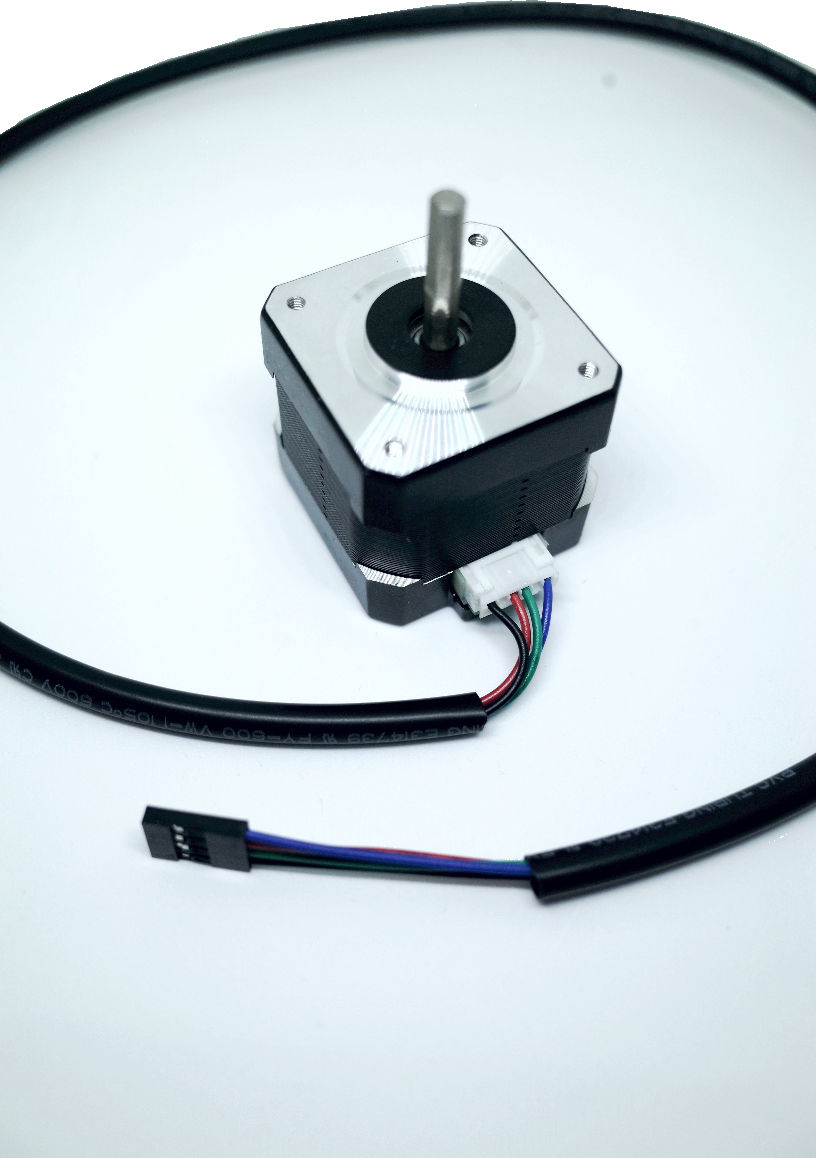

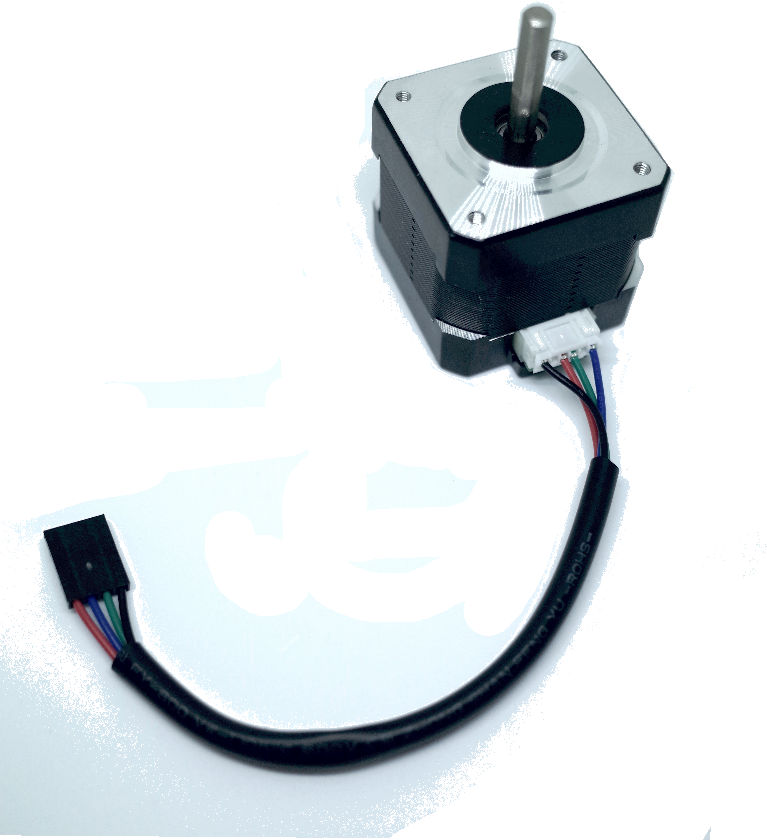

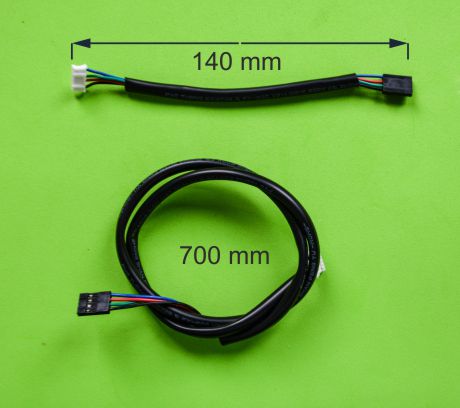

Select the cable you want with each motor for free!

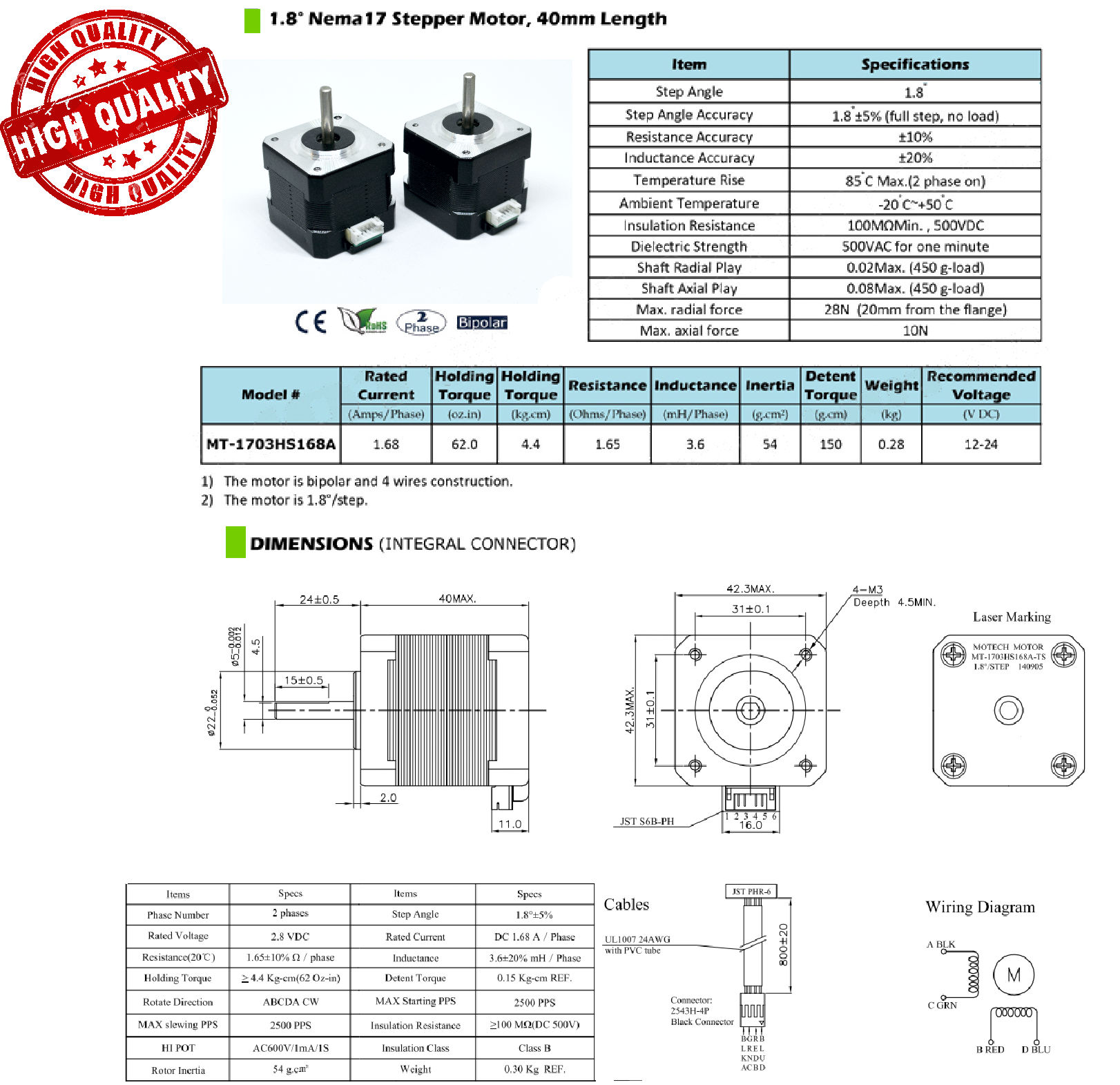

| Manufacturer Part Number | MT-1703HS168A |
| Step Angle | 1.8° |
| Step Accuracy | <5% |
| Holding Torque | 45 N·cm (62oz.in) |
| Rated Current/phase | 1.68A |
| Phase Resistance | 1.65ohms |
| Voltage | 12-24 V |
| Inductance | 3.6mH±20%(1KHz) |
| Weight | 280g |
| Weight | 0.10 kg |
|---|---|
| Dimensions | 4 x 4 x 8 cm |
| RoHS compliant | |
| Quality PCB |
